C5 UHF RFID Reader (Android 11/13)
Home /C5 UHF RFID Reader (Android 11/13)
C72 UHF RFID Reader (Android 11/13)
Reliable UHF RFID Performance for Enterprise Operations
Chainway C5 is a complete RFID mobile unit which is specifically manufactured for companies requiring quick and reliable RFID data collecting. It incorporates UHF RFID technology, Android computing technology, barcode reader, NFC, and even fingerprint scanning technology within one portable unit which can be used in identification and tracking in warehouses, retail, logistics, banks, security, and environmental industries. Its built-in UHF technology guarantees steady operation of RFID and the tough exterior housing is made for tough operation conditions.
It has an octa-core 2.3GHz processor with Android 11/13 operating system and it serves as a good platform for running various applications including RFID applications, inventory management applications, warehouse management system applications, and customized enterprise applications. Moreover, it is upgradable to Android 16 version providing long-term usage and application compatibility. The C5 unit is also equipped with optional memory, removable high-capacity batteries, and various communication methods.
APPLICATIONS
Features and Specifications
- Operating Temperature: -30°C to +60°C
- Humidity: 0 ~ 90% relative humidity, non condensing
- Weight: 1.7 kg
- Dimensions (CM): H 24 x W 12.8 x D 2.2
- Charging Supply: Regulated 12V DC/2A
- Power: 20 Wattage Maximum
- Camera: Dual cameras,2MP, 1920*1080, 6mm lens
- Sensor: 1/2.8" Progressive Scan CMOS
- Viewing angle: Vertical :30°; Horizontal :30°
- Display: 8 inches IPS HD Display, Brightness 400 cd/m2
- Audio: Inbuilt speaker - voice playback
- Enclosure: IP66 rated waterproof housing
- Recognition height: 1.2 - 2.2 meters, angle adjustable
- Recognition distance: 0.5 - 1.5 meters
- Recognition time: Less than 0.5 seconds
- CPU: Quad Core Processor, 1.5GHz
- Memory: 2GB memory + 16GB flash
- Operating system: Linux
- Face capacity: 30,000 face templates storage
- Transaction capacity: 5,00,000 time stamped events storage capacity
- Live detection: Yes
- Mask detection: Yes
- Infra red light source: Yes
- MTBF: > 50,000 hours
- Antistatic: Contact ±6KV, air ±8KV
- White light source: Yes
- Network interface: 10/100 Base-T RJ45 adaptive ethernet port
- GSM (optional): 4G/LTE, DC-HSPA+, WCDMA, EDGE
- Communication inteface: 1 RS485 interface port
- USB inteface: 1 USB interface port
- Wiegand interface: 1 Input port and 1 output port, 26 bit, 34 bit
- Interface protocol: UDP, RTP, RTSP, RTCP, HTTP, DNS, DDNS, DHCP, MQTT protocol

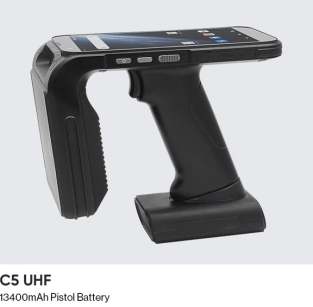

C5 UHF
C5 UHF

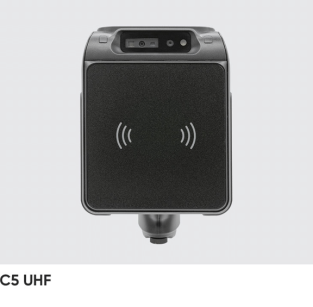

C5 UHF
C5 UHF
Why Choose the C5 UHF
UHF RFID Reading Technology
UHF RFID Reader includes the UHF RFID module which works using Impinj E Series chips. UHF RFID Reader is designed as per the standards of the Impinj Gen2X and EPCglobal Gen 2 (ISO18000-6C). This helps in detection of any object by UHF RFID Reader.. The C5 UHF RFID scanner can read up to 1,300 tags each second when that UHF RFID Reader uses polarization.
With the defined parameters, the C5 can cover distances of up to 30 meters when using Impinj MR6 tag, 32 meters with Impinj M750 tag, and 33 meters with Alien H3 anti-metal tag. The effective range and reading speed of the system depend on the tag used, environmental conditions, reader settings, and operating conditions. The performance enables users to collect massive amounts of data using RFID technology without tagging every object separately.
Integrated Data Capture
The C5 Android RFID reader merges RFID technology along with Android computing in a single handheld unit, thus avoiding the necessity of carrying multiple devices. Users will be able to utilize RFID technology for bulk identification and barcode scanning whenever necessary. The optional 2D scanning feature provides users with the ability to scan both 1D and 2D barcodes including popular QR Code, Data Matrix, PDF417, Code 128, Code 39, UPC, and EAN.
The optional NFC and PSAM features make the C5 RFID scanner a versatile device that can be used for various identification purposes on a single mobile platform.
Display and Ergonomic Operation

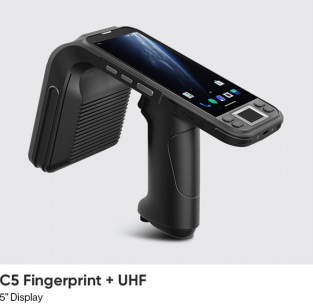

C5 also comes in two types – either a 5-inch fingerprint model with 1280 x 720 screen size or a 6-inch model with 2160 x 1080 screen size. The multi-touch panel of the device allows glove and wet finger operation and Corning Gorilla Glass protects the device during field operation.
This device has an integrated keypad with power button, two scan buttons, one user defined button and volume keys. Sound, LEDs and vibrations are included to give feedback during scan operations.
Long-Lasting Removable Battery
During long-term use, the C5 can be charged with the removable 7,000 mAh and 13,400 mAh pistol battery. The 100 mAh internal battery will help to ensure uninterrupted battery swap during prolonged stock counting, shift work, and logistics operations.
Rugged Enterprise Design
The C5 is made to work in tough situations. It is rated IP65 and can handle many drops of 1.5 meters into concrete within its operational temperature range. The C5 works well in temperatures from -20°C up to 50°C. It can be stored in temperatures low as -40°C and as high as 70°C. The C5 is also built to handle humidity levels between 5% and 95% RH.
It is also suitable for industries where dust and moisture’re common. The C5 is designed to stand up to environments where the C5 might face dust and moisture.
Connected Mobile Workflows
The Dual-Band Wireless Local Area Networks of 2.4 GHz & 5 GHz frequency bands and 802.11 a/b/g/n/ac protocols are compatible with the C5. The Bluetooth version 5.0 offers connectivity with peripheral devices, while GNSS gives the option of using GPS, AGPS, GLONASS, BeiDou & Galileo location protocols.
The USB Type-C and OTG connection interface are supported by the device. It is capable of supporting a Nano SIM card and Nano SIM or TF card, whereas PSAM slots are also optionally available.
.C5 RFID Reader Applications
C5 UHF RFID handheld reader can provide assistance in receiving, putting away, cycle counting, picking, stock verification, and shipping. The C5 RFID handheld readers in retail can also help in counting stock, locating products, verifying inventory, and performing replenishments.
C5 can provide assistance in logistics in terms of identifying packages, shipment verification, loading and deliveries. In terms of banking and security, the combination of RFID, barcode scanning, NFC, and fingerprints scanning functions will help in identification and data gathering in the field. The C5 handheld RFID reader can also be applied in asset tracking and equipment inspection.
Why Choose Chainway C5?
Chainway C5 UHF RFID Reader is a portable unit offering fast RFID, robust Android computer, and a number of functions to capture data. The UHF built-in system reduces the number of devices needed, and Impinj Gen2X ensures advanced RFID features. Expandable storage space, replaceable batteries, durable design, and connectivity options make it versatile for different uses.
In case you are considering a C5 RFID reader, this unit combines all features you may need in a combination of RFID performance, portability, durability, and flexibility. Thanks to the Android platform, the RFID capabilities can co-exist with other mobile applications.
.Supreme Arc for C5 RFID Solutions
Supreme Arc offers RFID systems and enterprise mobility services for those who are in search of an effective method of identification and tracking. Chainway C5 can be used in such areas as RFID inventory management, warehousing, retail inventory, logistics, and asset management.
Should you need a Chainway C5 RFID reader device, C5 RFID reader, or C5 portable RFID reader, Supreme Arc will be able to assist you with assessing the options.
