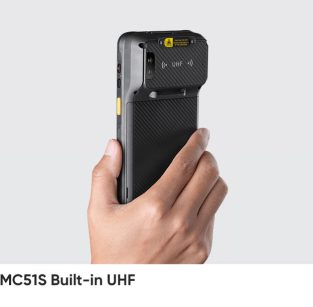

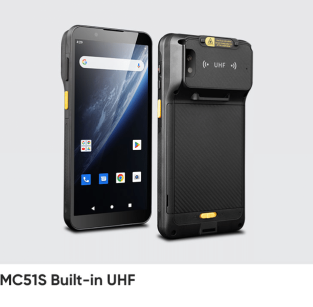

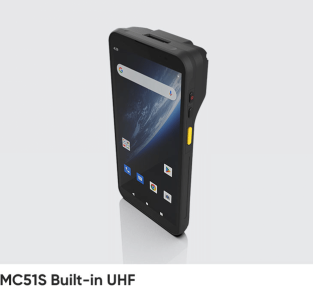

MC51S Built-in RFID Reader (Android 16)

Traditional stock control methods often involve manual scanning of individual items or manually recording information. The use of RFID technology can make these tasks easier, thanks to the fact that several tagged products can be read electronically. The combination of these two features can be found in the MC51S, which includes RFID capabilities along with the mobile Android computer.

Unlike the RFID scanner that comes from outside, this technology integration makes sure that there will be no shortage of RFID capabilities within the handheld device. This provides a small and effective solution for employees who frequently switch between shelves or workstations.

High Performance Built in UHF RFID Reader

The MC51S incorporates a proprietary UHF module featuring Impinj E Family reader chips and is compatible with Impinj Gen2X technology. This RFID system is intended to work with high-speed data reading with the claimed maximum read speed of over 750 tags per second.

The embedded UHF RFID reader allows communication via EPC C1 GEN2 / ISO18000-6C protocols and regional frequencies. Power output may be configured depending on the mode of operation. The implementation of the RFID technology in real life involves several aspects like RFID tag, antenna position, material, interference, and environment.

Compact and Lightweight Design

The biggest advantage of the MC51S includes its built-in RFID capability. One does not have to use any additional RFID sled to conduct hand-held scans. The end result is a lightweight mobile computer that can be conveniently operated while performing stock checking, inventory management or auditing functions.

Because it is relatively compact, the device is also user-friendly for those individuals who are required to stand up for long periods of time.

Android 16 RFID Platform

MC51S RFID reader Android 16 is powered by the Qualcomm Octa core processor, which has a maximum clock speed of 2.8 GHz. UFS configurations for the storage of 4GB + 64GB and up to 8GB + 256GB are available in order to provide enough memory capacity for enterprise applications.

Android 16 offers an advanced operating system for applications like inventory management, asset management, warehouse management, retailing, logistics, and many others. Chainway offers its SDK for the development of applications in Java via Eclipse/Android Studio.

6 Inches Display Size

 The device houses an HD 6 inches screen with 1440 x 720 pixels display resolution but there is an option for selecting 2160 x 1080 pixels screen resolution. Corning Gorilla Glass 3 ensures additional screen safety while the touch screen enables multi-touch functionality for operation by the user.

Such a screen enables users to have an easy-to-use interface that can show results obtained by RFID, information about the products, quantities of goods, applications and tasks’ instructions.

Fast and Reliable Connectivity

 Enterprise wireless capabilities include WLAN with fast roaming, optionally Wi-Fi 6, along with Bluetooth 5.0, optionally Bluetooth 5.1 and WWAN for mobile connectivity. The GNSS capability supports GPS, BeiDou, GLONASS, Galileo, and AGPS, with dual-frequency (L1+L5) positioning capability.

This facilitates the communication capability to interface with cloud applications, inventory applications, warehouse management applications, asset management applications, among others.

Rugged Construction for Business Use

MC51S is designed to be rugged. The enclosure of MC51S is IP67 and it can take up to 1.5 meter drops onto concrete floor. Moreover, the device is able to function in a temperature range of -20°С to +50°С and humidity up to 5% to 95%, non-condensing.

This ruggedness of MC51S UHF RFID reader allows it to be used in various environments including warehouse, manufacturing, logistics and mobile environments.

Power for Extended Operations

 This machine is provided with a 5,000mAh quick charge 3.0 smart battery, which is also The machine has been equipped with 5,000 mAh Quick Charge 3.0 smart battery which is also hot-swappable. This will guarantee uninterrupted inventory management, audit, and shifts at the warehouse level.

Having a removable battery also allows organizations to be more flexible when using the device on different shifts, especially in continuous RFID handheld scanning.

MC51S for Inventory Management

 RFID functionality provided by MC51S can be utilized for stock counting, cycle counting, receiving, dispatch, inventory verification, shelf checks, and reconciliation purposes. Employees can move around warehouses and detect products that have RFID tags without the need to scan individual items.

This may save employees from the tedious process of scanning every product manually. In case an inventory management solution is combined with the MC51S, data captured using RFID tags can be utilized to manage inventories.

MC51S for Asset Tracking

Organizations can utilize the MC51S to keep track of their IT assets, tools, furniture, machines, medical devices, and other expensive assets. Assets tagged with RFID tags can be located during auditing, location, and verifications.

The handheld reader gives the asset department the capability of carrying the reader to offices, facilities, storage areas, and operation areas to collect data on their assets via the application.

MC51S for Retail and Warehouse Operations

Some of the ways retail establishments can benefit from the MC51S UHF RFID reader include inventory counts, item locating, shelf verification, stock room inventory, replenishment, and transfer operations within the stores. Fashion retail establishments can be able to locate and identify their merchandise using RFID.

Some of the functions that the reader can help in executing in a warehouse environment include receiving, putaway, picking, packing, dispatch, cycle counting, and stock taking, among others.

MC51S for UAE Businesses

For companies in the UAE that want to do inventory tracking, asset tracking, retailing, warehousing, logistics, manufacturing, and field work, the MC51S can be utilized. It is an appropriate choice because of its small size and the presence of RFID technology in it without requiring a separate reader.

Supreme Arc is a company that supplies RFID hardware and technologies for identification purposes for companies that require a solution for managing inventory effectively.

Choose the MC51S Built-in RFID Reader

This MC51S RFID reader has integrated technologies such as UHF RFID, Android 16, 2.8GHz processing power, connectivity, robustness, and mobile data capture. This model has a tag reading rate of 750+ tags/second and reading distance of up to 5 meters within certain environmental settings, thus creating an excellent base for inventory and asset-based applications.

Supreme Arc is the place you need to contact regarding the MC51S Android 16 RFID reader. It will show you the power of integrated UHF RFID technology.
