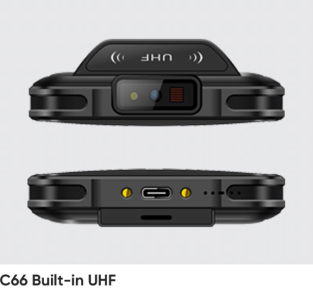

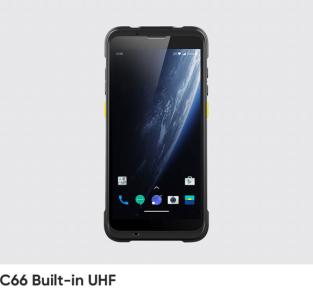

C66 Built-in RFID Reader

The C66 Built-in UHF RFID Reader has an UHF module that uses Impinj E Series chips. The C66 Built-in UHF RFID Reader gives reading of RFID tags when the system is moving. The C66 Built-in UHF RFID Reader works with EPC C1 GEN2 and ISO18000-6C protocols. The C66 Built-in UHF RFID Reader is also compatible with Impinj Gen2X, which gives UHF performance. Depending on the tag type and the environment the C66 Built-in UHF RFID Reader can read up to 2.7 metres away. The C66 Android RFID Reader uses a linear‑polarized antenna. It can set output power between +19 dBm and +30 dBm. These features let operators find tagged items quickly.

Android 11/13 Mobile Platform

The C66 Android handheld RFID reader runs on an Android platform making it ideal for business apps and mobile data collection. With support for Android 11 and Android 13 organizations can easily run applications for inventory management, asset tracking, warehouse operations, retail operations, logistics and field service. The device supports Google Mobile Services (GMS) Android Enterprise Recommended, Zero-Touch enrollment FOTA updates, Soti MobiControl and SafeUEM. These features help businesses manage devices and applications across deployments. The Chainway Software Development Kit allows developers to create Java applications using Eclipse and Android Studio.

 Compact Design with Rugged Protection

The C66 is built for operators who want RFID features without the hassle of gear.It is 160 x 76 x 26 mm. Its weight is around 297 grams inclusive of the battery. This means that it is light enough for portability during all work hours. The handheld design fits easily in one hand allowing use during busy work sessions.

A 5.5-inch IPS display with a resolution of 1440 x 720 gives a sharp view perfect for mobile apps in different lighting conditions. The multi-touch screen works when wearing gloves or if hands are wet so users don’t have to stop just because of the weather or safety gear.

Dust and water can’t get inside thanks to its IP65 sealing, which keeps the device safe in environments. The C66 is also built tough – it survives drops from up to 1.8 meters onto concrete under test conditions. This makes the C66 reliable, in real-world settings where things fall, get dropped or get exposed to elements.

Long-lasting Removable Battery

A removable 5200mAh battery powers the C66 for RFID tasks and supports QC3.0 fast charging. The maker says it can stay on standby for up to 490 hours under conditions. When in use it lasts more than 12 hours depending on how it’s used. This long battery life makes the C66 a good fit for jobs, like inventory counts, warehouse scanning, retail audits and asset checks. These are all tasks where workers need to move a lot during the day. The C66 keeps going without needing charging.

Flexible Data Capture

Beyond UHF RFID the C66 offers ways to capture data. The 13MP autofocus camera with flash can be used for taking pictures and handling barcode tasks when the barcode scanning feature is set up. NFC works at 13.56 MHz. Works with protocols like ISO14443A/B, ISO15693, NFC-IP1 and NFC-IP2 and it usually works from 2 to 4 cm. Using RFID, barcode, camera and NFC features lets businesses choose the best way to identify items, for different jobs.

Applications Across Industries

The C66 Built-in RFID Reader is designed for tasks that need identification and moving data collection. In warehouses workers can use it for bringing in goods, placing them in storage, checking stock picking items, making sure everything is correct and sending out products. In the area of logistics and express services the RFID and barcode features can help with recognizing packages and following their movement. Retail staff can do checks on inventory, make sure products are correct, look at what’s on the shelves and find assets. For companies that manage their equipment and other items the device can help people find, check and update information about items that have tags. The small size of this device also makes it good, for work done outside in the field inspections and collecting data when on the move.

Key Features

• The integrated UHF RFID module is built on Impinj E Series technology.
• The integrated UHF RFID module supports Impinj Gen2X EPC C1 GEN2 and ISO18000-6C.
• The integrated UHF RFID module can read up to 2.7 meters in the conditions.
• Android 11/13 operating system is included with enterprise management support.
• A Qualcomm octa-core 2.0 GHz processor powers the device.
• The 5.5-Inch HD IPS display works with gloves and wet hands.
• The 5200MAh removable battery supports QC3.0 charging.
• IP65 protection and rugged design can survive a drop of, up to 1.8 meters.
• A 13MP autofocus rear camera is available and barcode scanning can be added.
• 56 MHz NFC works with NFC protocols.
• Up to 256GB Micro SD expansion slot is included.
• Lightweight 297g handheld design makes it easy to carry.

Why Choose the C66 Built-in RFID Reader from Supreme ARC?

Supreme ARC offers the C66 as a RFID solution for organizations that want integrated UHF RFID and Android features in a single handheld device. The built-in design keeps RFID functions connected to the device so there is no need for an extra RFID accessory. This makes it easier for workers to do their jobs and cuts down on the amount of equipment needed every day. The C66 has protection, a battery that can be removed and has a large capacity, different memory options, NFC, a camera and support for managing devices in an enterprise. This means the C66 can be changed to fit business needs.

For organizations that are looking for the C66 RFID reader price, where to get it or how to use it Supreme ARC can help with guidance based on what the device will be used for. As a C66 RFID reader supplier and as a C66 RFID reader distributor Supreme ARC can help companies that are checking out the device for use in warehouses, retail stores, logistics, managing assets and keeping track of inventory. The Chainway C66 Built-in RFID Reader gives a mix of being easy to carry, having Android computing power and having UHF RFID features, for teams that need reliable data collection while working in different places.
