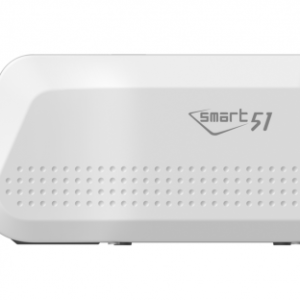

Hybrid Flipper
- Installable Encoding modules
Contact & Contactless Smartcard Encoder - Image Scanning & Barcode Recognition
Dual Sided Image Scanning (600dpi / 300dpi)
1D & 2D Barcode Recognition (Front / Back) - High Durability, Indicator LED
- Error Card Bin * (Max. 30 cards)
- Physical Lock & Kensington Lock
Your Trusted IT Security Solution
Two Door / Four Reader Controller
TwinXs 3S – RAC is a versatile access control panel and supports 2 doors using 4 access readers. The controller can be configured as standalone / Master or Slave. The controller supports host of other rule based features including global anti pass back.
Fully Programmable I/O’s
The Controller 12 Optically isolated digital inputs. All are configurable. Either as general purpose input or door sensors or egress switch inputs. Also the controller has 6 general purpose outputs. Configurable as either as lock control or extra signals. The general purpose outputs are available as potential free contacts
Data Communication & Protocols
The controller supports popular communication interfaces viz 10/100 mbps ethernet and RS485. It also supports multiple protocols such as HTTP, SNMP, FTP, SSL & NTP. It also supports MODBUS protocol over ethernet for integration with third party devices and software.
Compact Controller with Large Storage
The powder-coated, sleek 1U rack cabinet has a 4.2 Amp power supply unit, super-fast 32-bit processor, and massive 16 GB storage capacity that can hold 250,000 users and 500,000 last-made transactions.
Configurable Reader Interface
TwinXs 3S – RAC supports secure OSDP protocol over RS485 port. The controller also supports legacy clock/ data interface in addition to more popular weigand interface. The weigand interface is configurable from 24 to 255 bits.
Upgradable Software with Local Programming
Facility to onsite update device software through ethernet interface. The product updates can easily be applied without the need of removing device and sending it back to the service center.
Description
Features & Specifications
System
- Communication: USB
- Power Supply: Free Voltage (AC 100/ 220V, 50~60Hz)
- Power Consumption: 24V, 2A
- Temperature: 15~35℃
- Humidity: 35~70%
Encoding Options
- Contact: ISO 7816 A/B/C Card, ISO 7816 1/2/3/4 Microprocessor Card
- Contactless: ISO 14443 (Type A/ B), MIFARE, DESFIRE, iCLASS, ISO 18092(NFC), Felica
Scanner Option
- Image Scanner: Selectable 300 & 600 dpi Dual-sided image scanning resolution
- Scanning Speed: 4.5sec/card (300 dpi), 6sec/card (600 dpi)
- Barcode Recognition: 1D & 2D Barcode Recognition (Front/Back)
Dimensions
- Milimeter: 110 (W) x 204 (L) x 305 (H)
- Inch: 4.3 (W) x 8.0 (L) x 12 (H)
Weight
- Kg/Lbs: Approx. 2.8 kg/6.2 lbs. (Without Optional modules)
Error Card Bin
Ejection device for faulty card is equipped inside Flipper (Max. 30 cards) * If encoder or scanner options are not selected, Error Card Bin will be provided.
SOLUTION
FaceScribe Plus
FaceScribe Plus
FaceScribe Plus
Extra Functionality
The device also comes with optional GSM functionality making it future ready, reliable, and user-friendly authentication solution. With its rugged design, the FaceScribe Plus offers a contactless and ergonomic experience, which allows users to access doors and devices in a matter of seconds. This product will be a very popular addition to our product line.
